TM 5-3805-293-23-5
0292
ADJUSTMENT CONTINUED
000292
6. Open cab door and insert paper between seal and cab.
7. Close cab door to second latch.
8. If paper is easily removed, loosen striker bolt (Figure 21, Item 3) and nut (Figure 21, Item 1) and move striker
assembly (Figure 21, Item 2) in towards cab.
9. If paper is not easily removed, latch is adjusted properly.
10. Repeat steps 6, 7, and 8 until paper is not easily removed.
11. Tighten nut (Figure 21, Item 1) and bolt (Figure 21, Item 3).

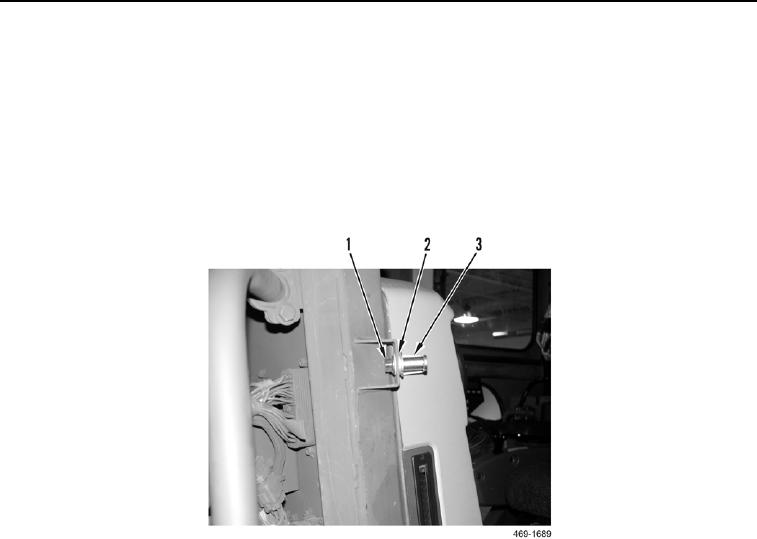

Figure 21. Door Striker.
0292
END OF TASK
FOLLOW-ON TASKS
000292
Install door wiper motor (WP 0259).
END OF TASK
END OF WORK PACKAGE
