TM 5-3805-293-23-5
0292
REMOVAL CONTINUED
2. Disconnect door wiper harness (Figure 2, Item 1) from bulkhead connector (Figure 2, Item 2).
3. Disconnect washer hose (Figure 2, Item 4) from fitting (Figure 2, Item 3).

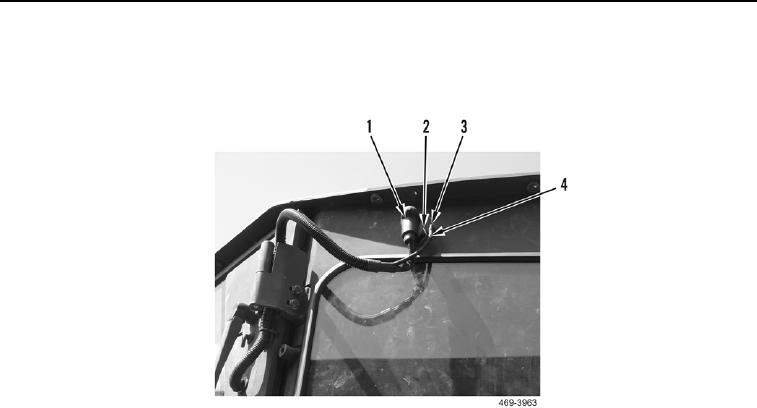

Figure 2. Door Wiper Bulkhead Connector.
0292
