ASSEMBLY
000287
N OT E
Install elbows and tee fitting as noted during removal.
4. Install new O-ring (Figure 4, Item 4) and tee fitting (Figure 4, Item 3) on brake control valve (Figure 4, Item 7).
5. Install five new O-rings (Figure 4, Item 6) and elbows (Figure 4, Item 5) on brake control valve (Figure 4,
Item 7).
6. Install two new O-rings (Figure 4, Item 2) and pipe (Figure 4, Item 1) to brake control valve (Figure 4, Item 7).
.

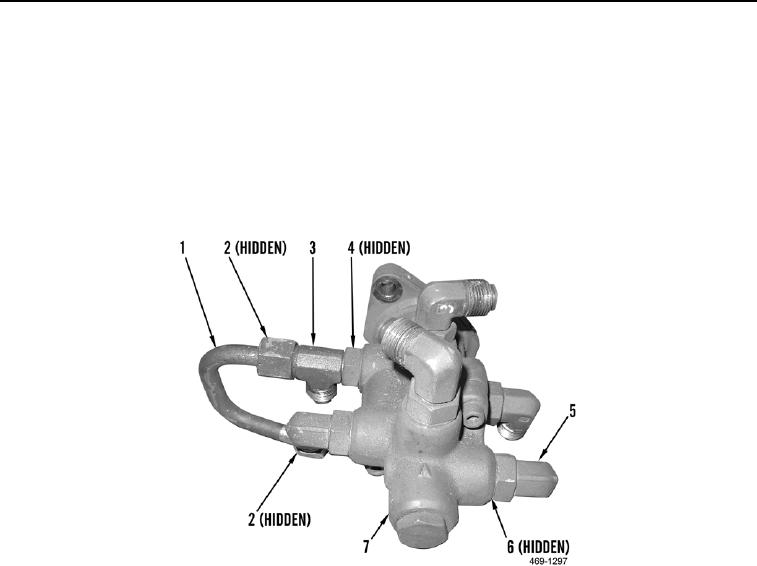

Figure 4. Brake Control Valve Assembly.
0287
END OF TASK
