TM 5-3805-293-23-5
0282
ASSEMBLY CONTINUED

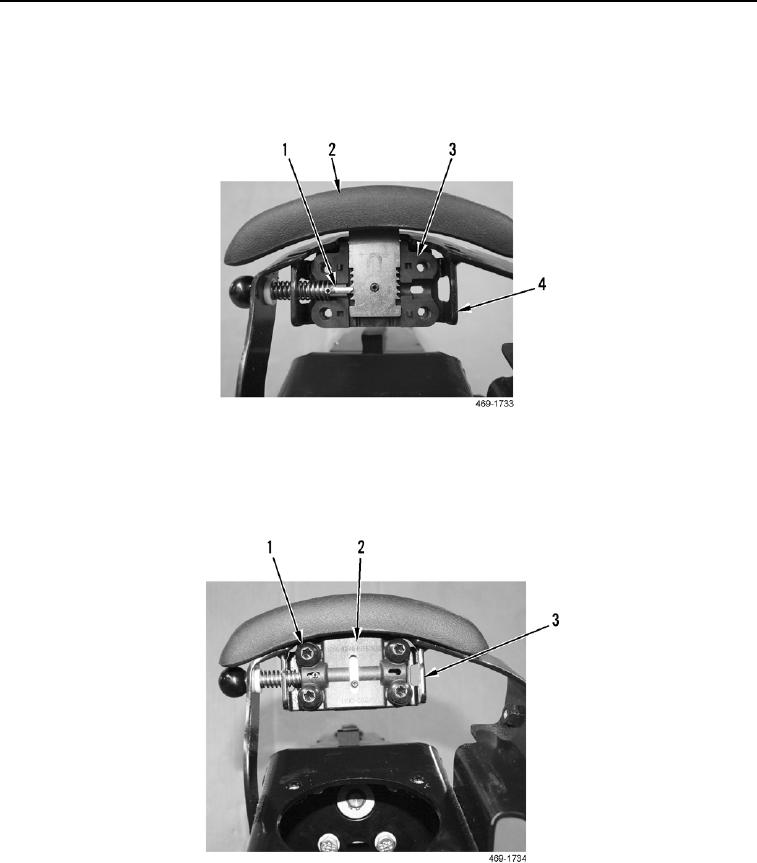

10. Install wrist support on wrist support bracket.
a. Align bushing (Figure 25, Item 3), wrist support (Figure 25, Item 2), and wrist support locking pin
(Figure 25, Item 1) on wrist support bracket (Figure 25, Item 4).
Figure 25. Wrist Support Bushing.
0282
b. Install bushing (Figure 26, Item 2) and four screws (Figure 26, Item 1) on wrist support bracket (Figure 26,
Item 3).
Figure 26. Wrist Support.
0282
