TM 5-3805-293-23-5
0277
INSTALLATION CONTINUED

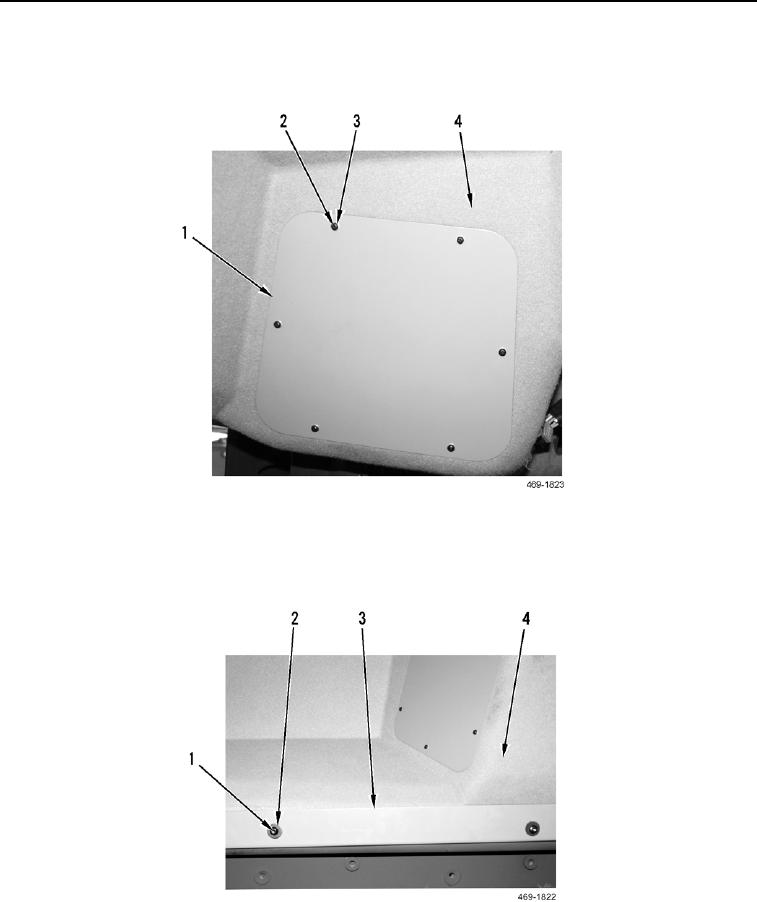

22. Install relay access cover (Figure 29, Item 1), six washers (Figure 29, Item 3), and screws (Figure 29, Item 2)
on headliner (Figure 29, Item 4).
Figure 29. Relay Access Cover.
0277
23. Install right trim plate (Figure 30, Item 3), two washers (Figure 30, Item 2), and screws (Figure 30, Item 1) on
headliner (Figure 30, Item 4).
Figure 30. Right Trim Plate.
0277
