INSTALLATION CONTINUED
20. Connect two joystick illumination connectors (Figure 27, Item 2) to harness (Figure 27, Item 1).

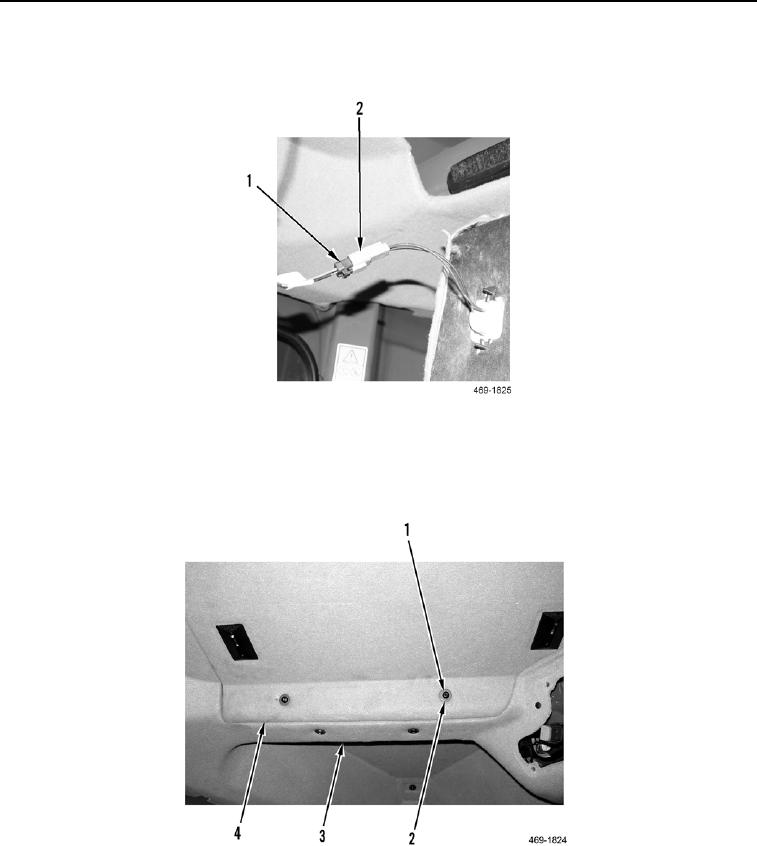

Figure 27. Joystick Illumination Connectors.
0277
21. Install center headliner access panel (Figure 28, Item 4), two washers (Figure 28, Item 2), and screws
(Figure 28, Item 1) on headliner (Figure 28, Item 3).
Figure 28. Center Headliner Access Panel.
