TM 5-3805-293-23-5
0277
REMOVAL CONTINUED

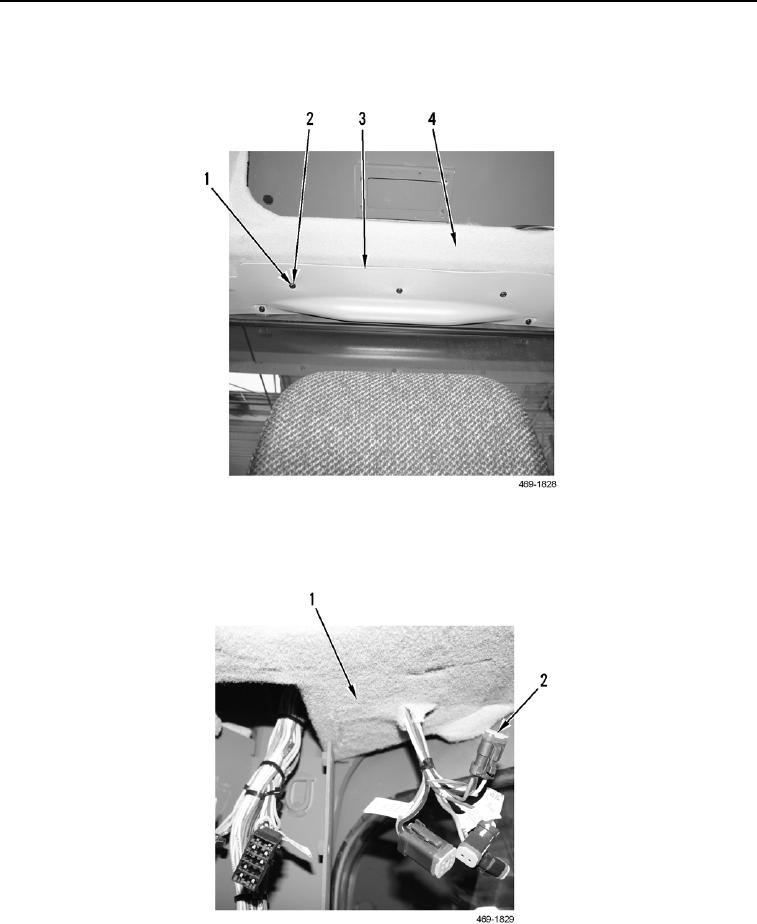

14. Remove seven screws (Figure 10, Item 1), washers (Figure 10, Item 2), and rear trim panel (Figure 10, Item 3)
from headliner (Figure 10, Item 4).
Figure 10. Rear Trim Panel.
0277
15. Push four AWD connectors (Figure 11, Item 2) through headliner (Figure 11, Item 1).
Figure 11. AWD Connectors.
0277
