TM 5-3805-293-23-5
FIELD MAINTENANCE
-
CAB TRIM REPLACEMENT
0
277
Removal, Cleaning and Inspection, Installation
INITIAL SETUP
Equipment Condition
Tools and Special Tools
0
0
Tool Kit, General Mechanic's
Machine parked (TM 5-3805-293-10)
0
(WP 0354, Item 83)
Wiper control switches removed (WP 0274)
0
0
Screwdriver Attachment, Torx Bit, 3/8" Dr,
Control switch panel removed (WP 0275)
0
T-30 (S0388) (WP 0354, Item 85)
Climate control switches removed (WP 0293)
0
0
Materials/Parts
Drawings Required
0
0
Lockwasher (3)
TM 5-3805-293-24P, Figure 133,149
0
0
References
Estimated Time to Complete
0
0
5.5 Hr
0
0
0
REMOVAL
000277
1. Remove knob (Figure 1, Item 4), bolt (Figure 1, Item 6), and mirror (Figure 1, Item 1) from bracket (Figure 1,
Item 5).
2. Remove two bolts (Figure 1, Item 2), washers (Figure 1, Item 3), and bracket (Figure 1, Item 5) from cab.

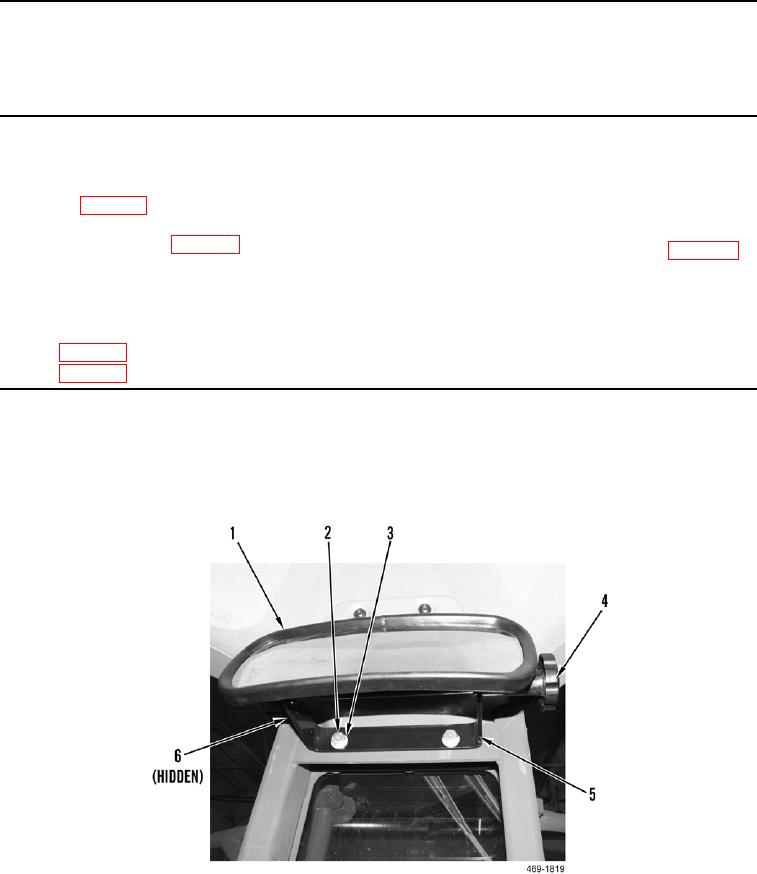

Figure 1. Rearview Mirror.
0277
