TM
5-3805-293-23-5
0277
REMOVAL
CONTINUED
24.
Remove
five
screws
(Figure
16,
Item
2),
washers
(Figure
16,
Item
3),
and
right
floorpan
cover
plate
(Figure
16,
Item
1)
from
cab.

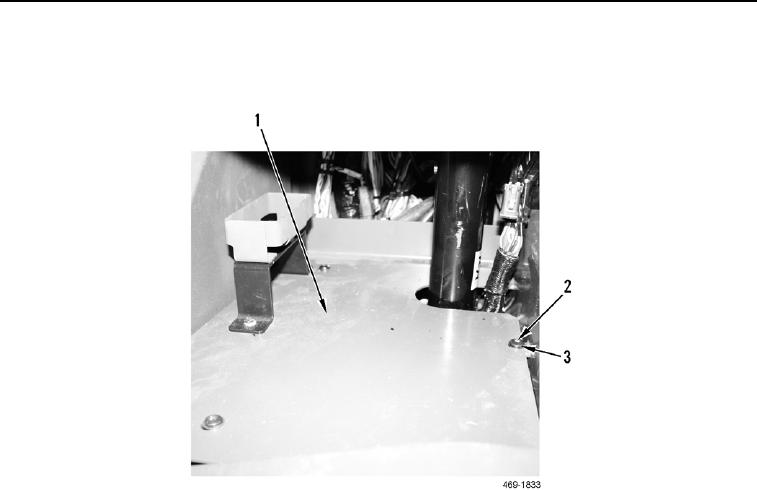

Figure
16.
Right
Floorpan
Cover
Plate.
0277
0277-9
