TM 5-3805-293-23-5
0339
REMOVAL CONTINUED
000339
4. Remove bolt (Figure 2, Item 4), washer (Figure 2, Item 5), clamp (Figure 2, Item 2), and fuel supply line (Figure
2, Item 1) from bracket (Figure 2, Item 6).
5. Remove tiedown strap (Figure 2, Item 3) from block heater fuel supply line (Figure 2, Item 1). Discard tiedown
strap.
N OT E
Note routing of fuel supply line to aid in installation.
6. Remove fuel supply line (Figure 2, Item 1) from rear frame.

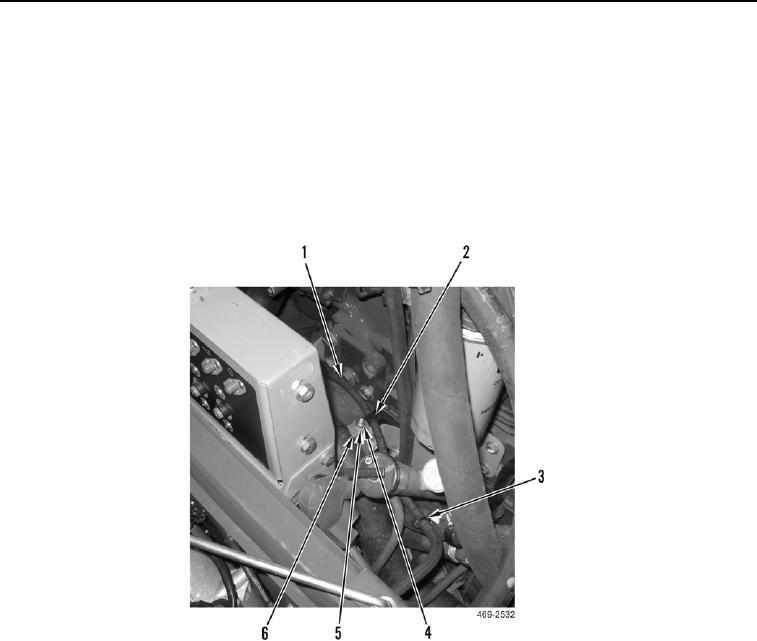

Figure 2. Block Heater Fuel Supply Line Routing.
0339
