REMOVAL CONTINUED
000336
3. Remove one locknut (Figure 3, Item 5) and washer (Figure 3, Item 6) from battery cable cover (Figure 3,
Item 4). Discard locknut.
4. Remove four bolts (Figure 3, Item 2), washers (Figure 3, Item 3) and battery cable cover (Figure 3, Item 4)
from engine enclosure (Figure 3, Item 1).

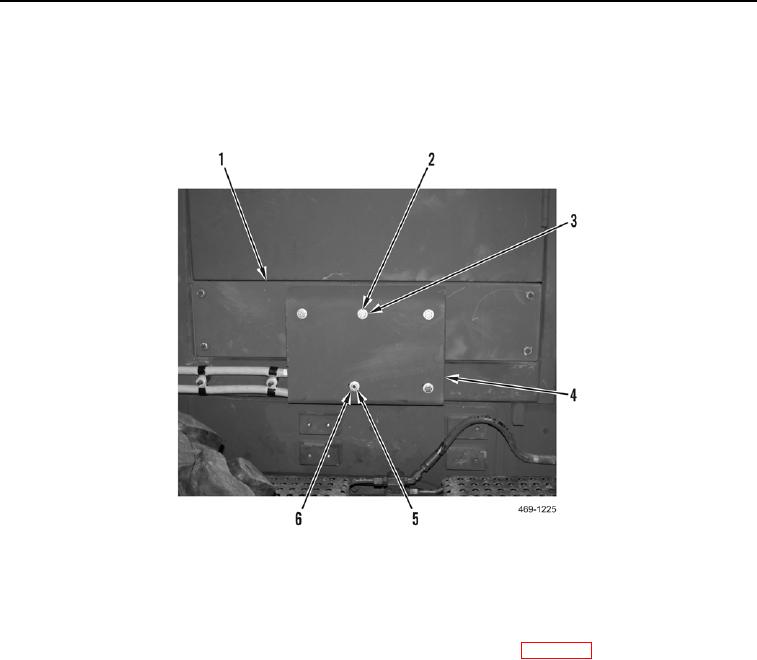

Figure 3. Front Battery Cable Cover.
0336
END OF TASK
CLEANING AND INSPECTION
000336
Clean and inspect all parts IAW Mechanical General Maintenance Instructions (WP 0346).
END OF TASK
INSTALLATION
000336
1. Install battery cable cover (Figure 3, Item 4), four washers (Figure 3, Item 3) and bolts (Figure 3, Item 2) on
engine enclosure (Figure 3, Item 1).
2. Install one washer (Figure 3, Item 6) and new locknut (Figure 3, Item 5) on battery cable cover (Figure 3,
Item 4).
3. Install battery cable cover (Figure 2, Item 4), five washers (Figure 2, Item 3) and new locknuts (Figure 2,
Item 2) on engine enclosure (Figure 2, Item 1).
