TM 5-3805-293-23-5
0310
REMOVAL CONTINUED
WARN I N G
Hydraulic oil is very slippery. Immediately wipe up any spills. Failure to follow this warning
may result in injury to personnel.
N OT E
Tag and mark hoses to aid in installation.
Cap and plug all lines and fittingsat removal to prevent contamination.
2. Disconnect hose (Figure 7, Item 2) from elbow (Figure 7, Item 4).
3. Remove elbow (Figure 7, Item 4) from cylinder (Figure 7, Item 1), and remove and discard two O-rings
(Figure 7, Item 3).
4. Disconnect hose (Figure 7, Item 5) from elbow (Figure 7, Item 7).
5. Remove elbow (Figure 7, Item 7) from cylinder (Figure 7, Item 1), and remove and discard two O-rings
(Figure 7, Item 6).

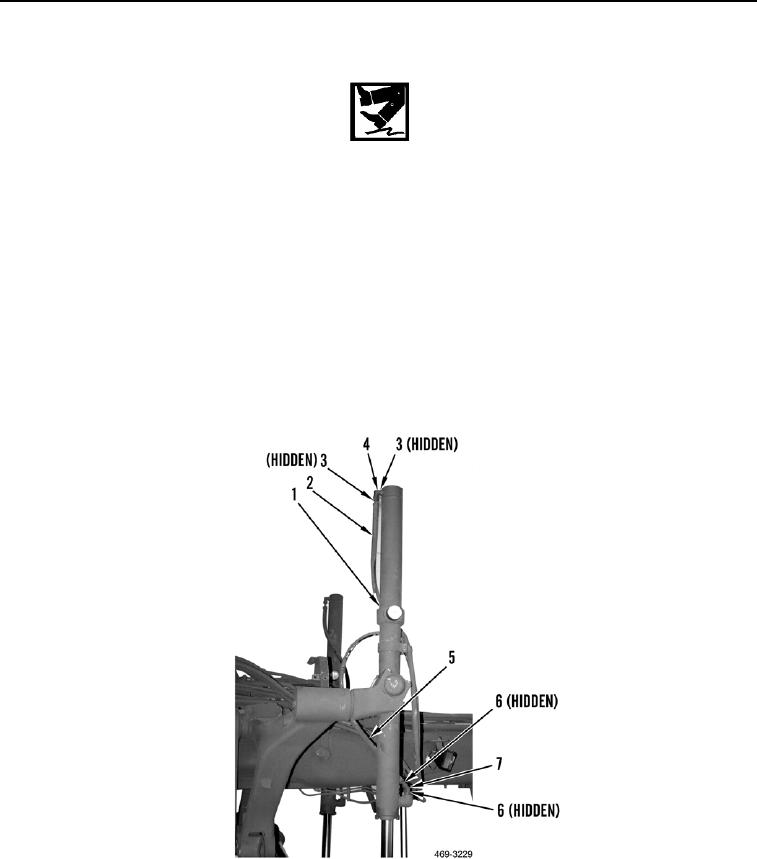

Figure 7. Right Blade Lift Cylinder.
0310
