REMOVAL CONTINUED
9. Remove bolt (Figure 5, Item 3), washer (Figure 5, Item 2), and clamp (Figure 5, Item 4) from hose (Figure 5,
Item 5) and stanchion (Figure 5, Item 1).
10. Disconnect hose (Figure 5, Item 5) from rear valve (Figure 5, Item 9), and remove and discard O-ring (Figure 5,
Item 7).
11. Disconnect hose (Figure 5, Item 6) from rear valve (Figure 5, Item 9), and remove and discard O-ring (Figure 5,
Item 8).
12. Remove hoses (Figure 5, Items 5 and 6) from machine.

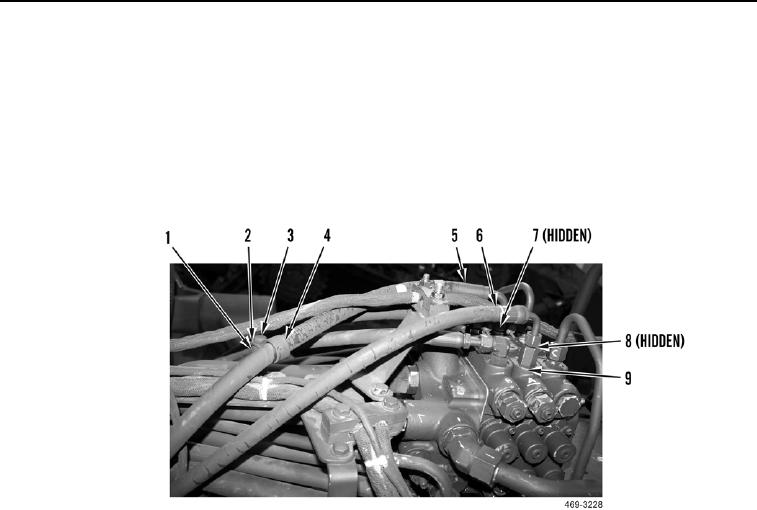

Figure 5. Left Rear Valve.
0310
END OF TASK
