REMOVAL CONTINUED

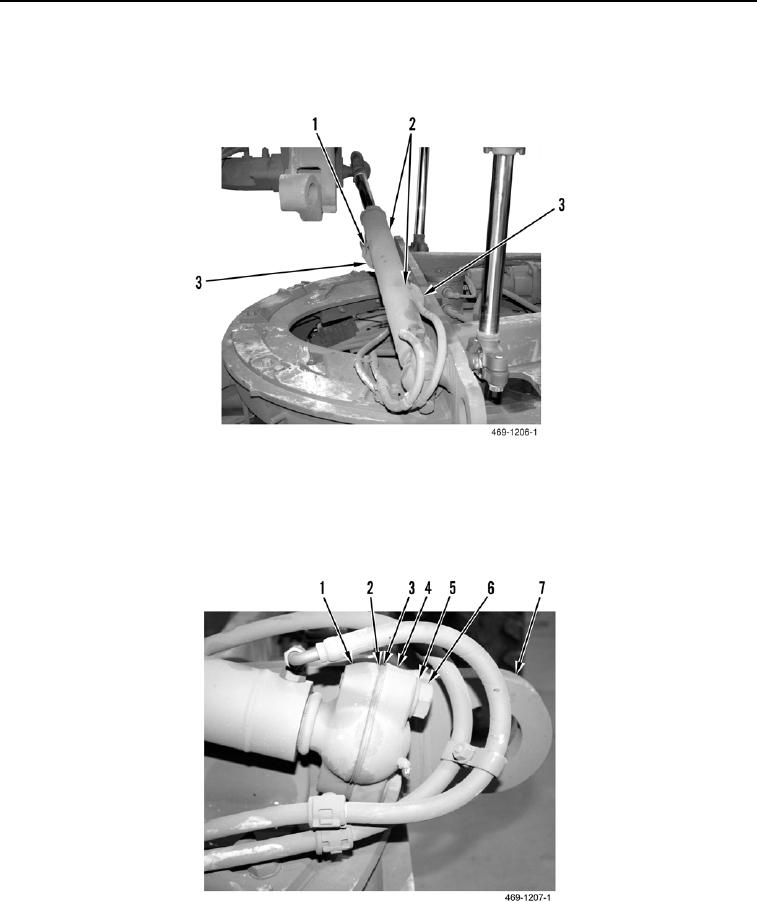

14. Loosen two clamps (Figure 6, Item 1) and remove two blocks (Figure 6, Item 3) from centershift cylinder
(Figure 6, Item 2).
Figure 6. Hose Clamp.
0302
15. Remove two bolts (Figure 7, Item 6), washers (Figure 7, Item 5), cap (Figure 7, Item 4), shims (Figure 7,
Item 3), and two inserts (Figure 7, Item 2) from centershift cylinder (Figure 7, Item 1).
16. Using lifting device, remove centershift cylinder (Figure 7, Item 1) from circle assembly (Figure 7, Item 7).
Figure 7. Centershift Cylinder.
