TM 5-3805-293-23-5
0301
INSTALLATION
000301
WARN I N G
Hydraulic oil is very slippery. Immediately wipe up any spills. Failure to follow this warning
may cause injury to personnel.
N OT E
Install hydraulic hoses as tagged during removal.
1. Install spacer (Figure 4, Item 2), clamp (Figure 4, Item 5), hydraulic hose (Figure 4, Item 1), washer (Figure 4,
Item 3), and nut (Figure 4, Item 4) on machine.
2. Install clamp (Figure 4, Item 7), washer (Figure 4, Item 10), and bolt (Figure 4, Item 8) on hydraulic hose
(Figure 4, Item 1).
3. Connect hydraulic hose (Figure 4, Item 1) to centershift lock (Figure 4, Item 9).
4. Connect hydraulic hose (Figure 4, Item 1) to junction block (Figure 4, Item 6).

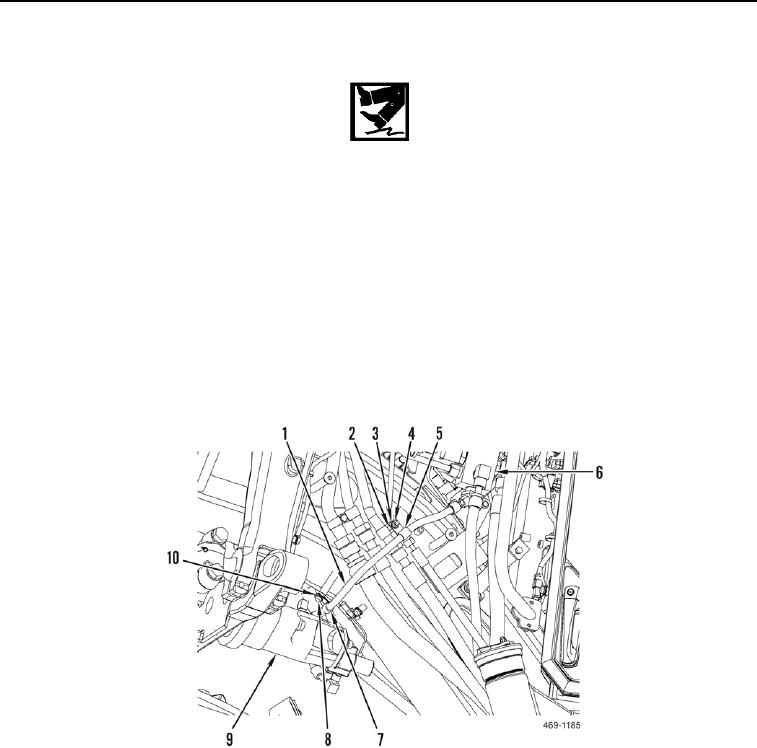

Figure 4. Hydraulic Hose 3.
0301
