TM 5-3805-293-23-5
0297
REMOVAL
000297
1. Loosen bolt (Figure 1, Item 12) and disconnect harness connector (Figure 1, Item 1) from right front bulkhead
(Figure 1, Item 2).
2. Remove two bolts (Figure 1, Item 9), washers (Figure 1, Item 10), and bracket (Figure 1, Item 11) from right
front bulkhead (Figure 1, Item 2).
3. Remove two bolts (Figure 1, Item 6), washer (Figure 1, Item 7), and bracket (Figure 1, Item 8) from right front
bulkhead (Figure 1, Item 2).
4. Remove bolt (Figure 1, Item 4), washer (Figure 1, Item 5), and ground strap (Figure 1, Item 3) from right front
bulkhead (Figure 1, Item 2).

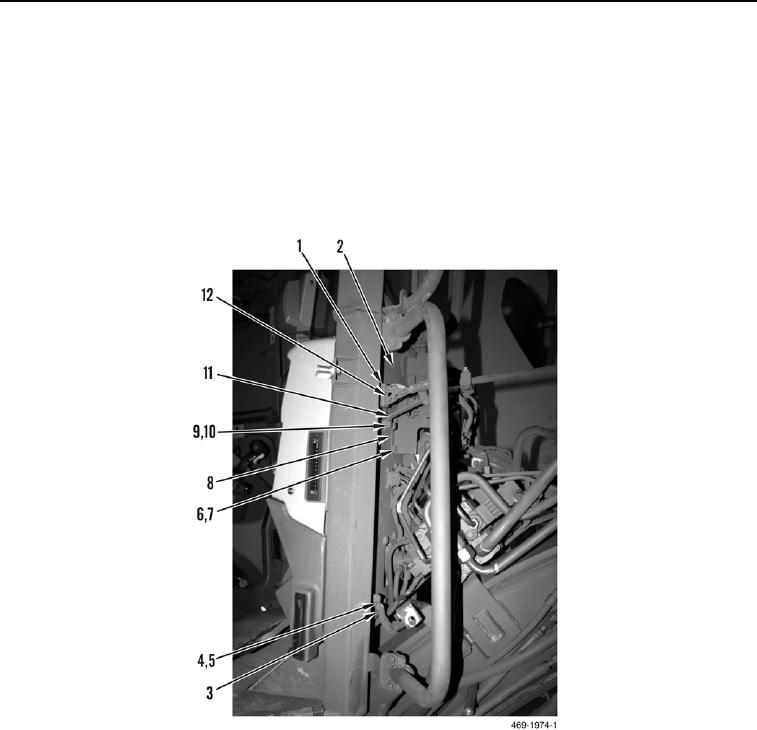

Figure 1. Right Front Bulkhead.
0297
