ASSEMBLY CONTINUED
11. Install recliner latch pull rod (Figure 26, Item 1) on recliner latch (Figure 26, Item 6) and recliner handle
(Figure 26, Item 2).
12. Install two pins (Figure 26, Item 3), four washers (Figure 26, Item 4), and two cotter pins (Figure 26, Item 5), on
recliner latch pull rod (Figure 26, Item 1).

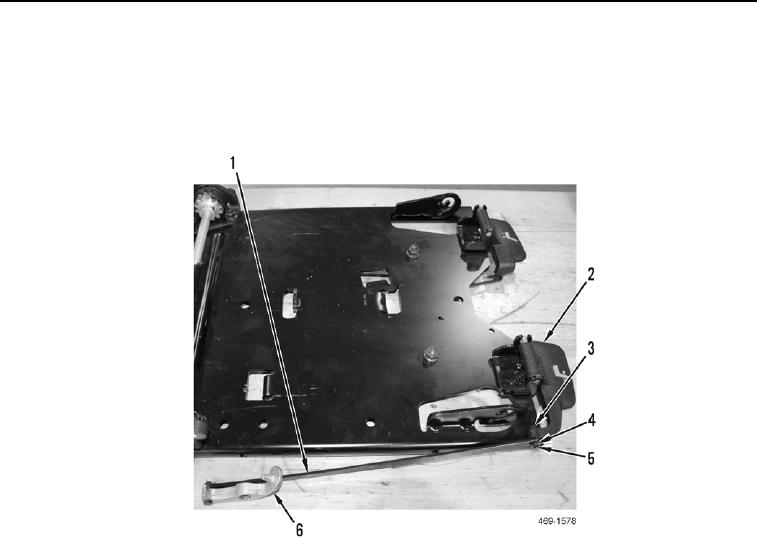

Figure 26. Recliner Latch Pull Rod.
