BLADE TIP CYLINDER REPAIR - CONTINUED
0334 00
ASSEMBLY - CONTINUED
NOTE
Seals can be damaged by careless handling during installation. Driving tools must not strike bearings or
rings which remain in rod and cylinder assembly.
17.

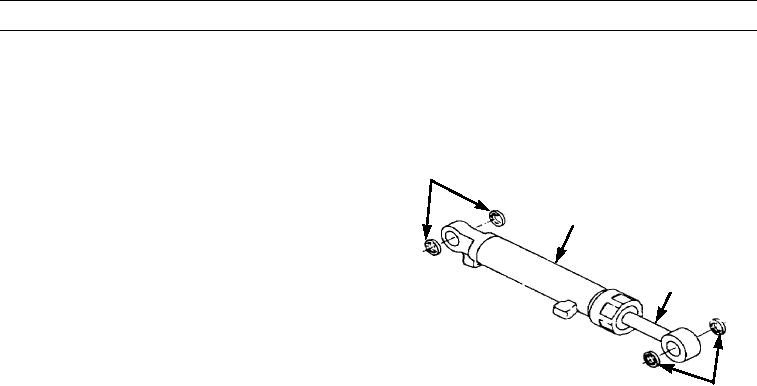

Install two new seals (4) with lips toward outside and
1
even with outer surface of rod (3).
18.
Install two new seals (1) in end of cylinder (2).
2
3
3
4
397-1598
19.
Install blade tip cylinder (WP 0244 00).
END OF WORK PACKAGE
