INSTALLATION CONTINUED
000342
4. Install new O-ring (Figure 5, Item 11) and fuel supply line (Figure 5, Item 9) on tube coupling (Figure 5,
Item 10).
5. Install arctic heater inlet hose (Figure 5, Item 7) on tube coupling (Figure 5, Item 6) and tighten clamp (Figure
5, Item 8).
6. Install arctic heater outlet hose (Figure 5, Item 5) on tube coupling (Figure 5, Item 3) and tighten clamp (Figure
5, Item 4).
7. Connect main rear wiring harness connector (Figure 5, Item 2) to heater box bulkhead connector (Figure 5,
Item 1).

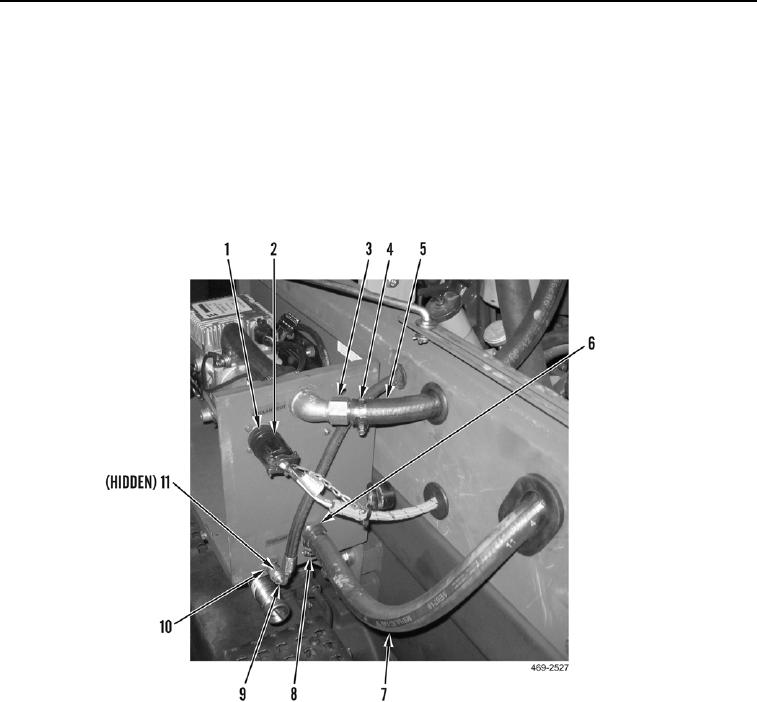

Figure 5. Arctic Heater Connections.
