TM 5-3805-293-23-5
0334
REMOVAL CONTINUED
000334
N OT E
Tag and mark wires to aid in installation.
3. Position four terminal covers (Figure 3, Item 5) aside.
4. Loosen nut (Figure 3, Item 3) and disconnect negative battery cable (Figure 3, Item 6) from battery (Figure 3,
Item 7).
5. Loosen two nuts (Figure 3, Items 8 and 10) and remove jumper battery cable (Figure 3, Item 9) from batteries
(Figure 3, Items 1 and 7).
6. Loosen nut (Figure 3, Item 2) and disconnect positive battery cable (Figure 3, Item 4) from battery (Figure 3,
Item 1).

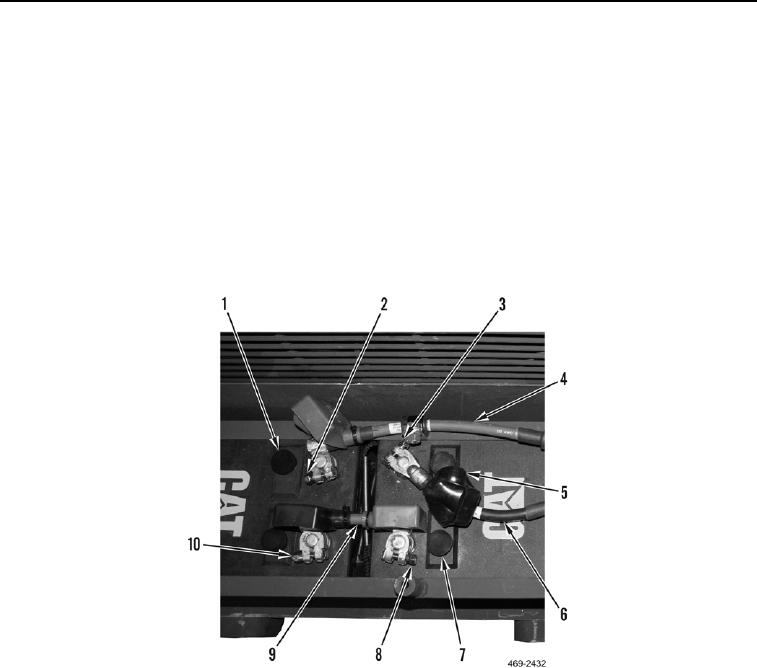

Figure 3. Battery Cables.
0334
